Hyundai HB20 + 2 Airbags (Test 2013)

10.23 points / 16.00

FRONT

Protection

GOOD

ADEQUATE

MARGINAL

WEAK

POOR

Voluntary UNECE95 test	Performed - Approved

COMMENTS:

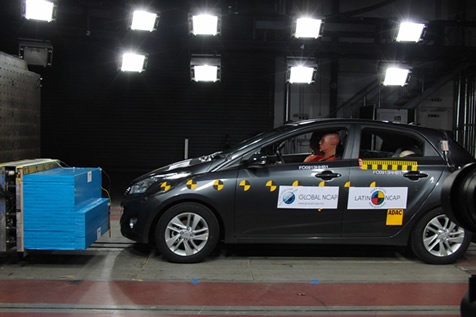

In the frontal impact the head and neck were well protected. The driver’s chest showed marginal protection from the restraint systems. The passenger head was well protected. There were hazardous structures in the area of the facia that could be impacted by an the driver and front passenger knees. The footwell area was intact after the impact. The vehicle cell was rated as stable during the impact.

See protocol

4.77 points / 49.00

	CHILD RESTRAINT SYSTEM	Head / Chest	CRS type	Installation	Position
18-month-old child	Britax First Class	Vulnerable / Fair	0/0+/1	Belted
3-year-old child	Britax First Class	Vulnerable / Poor	0/0+/1	Belted

COMMENTS:

The child seat for the 3 year old dummy showed fracturing due to the loading so there was head contact on the rear of the driver seat. The head and chest acceleration was over the lower performance limit. The 1 1/2 year old showed marginal to poor protection, the chest area was loaded high. In the rebound phase the dummy hit the headrest with its head. The installation instructions on both child seats were insufficient and not permanently attached to the seat. The Rearword facing CRS contacted the female buckle and opened its housing.

See protocol

Car information
5 door Hatchback	2013
Brazil	1301 Kg

Safety equipment
Driver frontal airbag	YES
Front passenger frontal airbag	YES
Side head airbags	NO
Side body airbags	NO
Driver knee airbag	NO
Front belt pretensioners	YES

Hyundai HB20 + 2 Airbags
